Laboratory Acid Scrubbers

HORIZON

Laboratory Acid Scrubbers

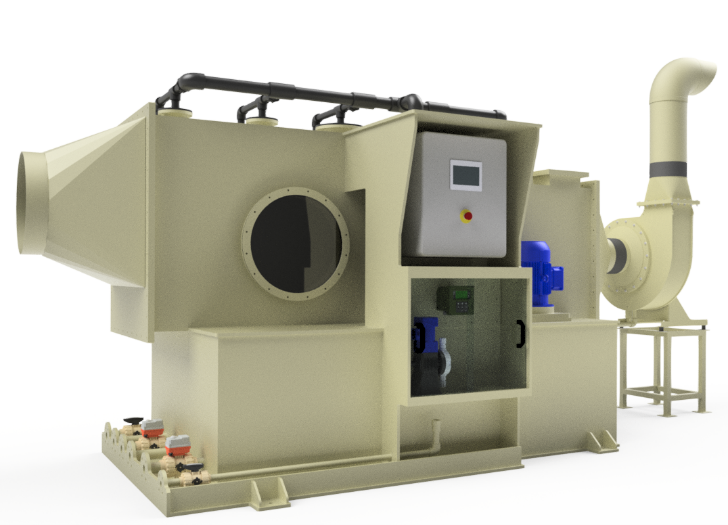

Modulab’s HORIZON acid scrubbers efficiently remove and neutralise acid fumes from laboratory fume cupboards. Available in four models, they handle air flow rates from 2,500 to 10,000 Am³/hr and can extract from multiple fume cupboards simultaneously. Made from chemically resistant Polypropylene, they remove over 98% of acid contaminants when the scrubber liquor’s pH is maintained. The range includes an automated dosing module that precisely regulates pH using liquid Caustic Soda (NaOH), ensuring the elimination of all commercially used acids and preventing harmful emissions in laboratory environments.

Polypropylene PP-H

Horizontal scrubber with Q-PAC scrubbing media, Continuous level control, Recirculation pump, Auto water filling, Extraction fan, E&I control panel

Secondary auto PH adjustment module, Secondary auto ORP adjustment module, Secondary auto conductivity adjustment module, Free standing stack.

MODEL HORIZON 600 HORIZON 800 HORIZON 1000 HORIZON 1200
FLOW RATE
2500 m3/Hr
4500 m3/Hr
7000 m3/Hr
10000 m3/Hr
FAN
VCPA 250
VCPA 250
VCPA 315
VCPA 400
SUMP VOLUME
1000 L
