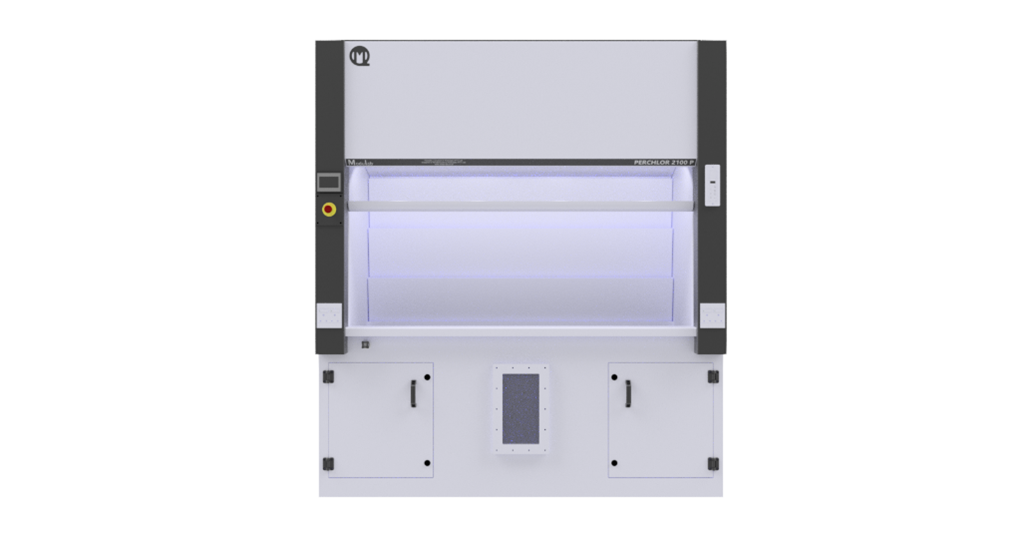

Perchlor Elite
Perchloric Acid Fume Cupboards
Perchlor Elite
Perchloric Acid Fume Cupboards
Modulab’s PERCHLOR ELITE automated fume cupboards are specially designed for safe and efficient handling of Perchloric Acid. Featuring advanced wetted extraction and built-in wash-down facilities, these cupboards ensure thorough cleaning and optimal safety during use. Perfect for applications requiring high safety standards.
Material Options
| Fume Cupboard Outer Shell | Fume Cupboard Inner Liner | Sash |
|---|---|---|
|
Polypropylene |
Polypropylene |
Cast Polycarbonate |
|
|
|
Tempered Glass |
Standard Features
Support frame with cabinetry, manual sliding sash, 4 x double 240VAC plug sockets, bright white LED lighting, touch screen control, sacrificial Phenolic Resin base, recirculation tank & pump, CIP ring main, MQFM1 Airflow Monitor with alarm & light indicator
Optional Extras
Variety of front control utility taps & faucets, oval drip cup/s.
Specifications
| MODEL | PERCHLOR ELITE 1500 | PERCHLOR ELITE 1800 | PERCHLOR ELITE 2100 | PERCHLOR ELITE 2400 |
|---|---|---|---|---|
|
WIDTH
|
1500 mm |
1800 mm |
2100 mm |
2400 mm
|
|
DEPTH |
900 mm |
|||
|
HEIGHT (excl. base frame) |
1600 mm |
|||
|
HEIGHT (incl. base frame) |
2350 mm |
|||
